Owl 2560

Owl 2560

5.2MP 1/1.4″ QUAD SXGA Vis-SWIR Camera

Specification

The Owl 2560 Vis-SWIR camera offers QUAD SXGA format giving 5.2 MP resolution . It provides spectral resolution from 400nm to 1700nm with QE up to 75% at 1200nm. It is ruggedised to withstand the harshest operating environments in airborne, space, surveillance, industrial and marine applications.

Enquire Now

Share This Items :

  • Key Features

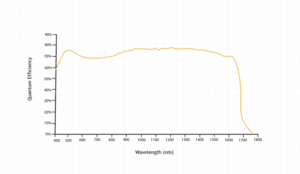

  • QE Curves
  • Applications
  • 2560 x 2048, 3.45μm pitch VIS-SWIR technology: Enables highest resolution imaging from 0.4μm to 1.7μm
  • CoaXpress interface: Enables frames rates of up to 60Hz in full resolution
  • On-board Automated Gain Control (AGC): Enables clear video in all light conditions
  • Advanced video enhancement and signal processing features: Optimizing image quality and output in real-time

  • Surveillance

    • HD long range day / night SWIR imaging
    • Airborne and ground payload
    • Hand Held Systems
    • Driving Vision Enhancement (DVE)
    • Airborne EVS
    • Vision enhancement

    Space

    • Earth Observation
    • Hyperspectral Imaging
    • Multispectral Imaging
    • Space Situational Awareness
